Sailing Course / Module 9 / Maintenance

Lesson 2 - Tools

OBJECTIVE

To provide you with an understanding of what tools are used in the maintenance of rigging, that are not common to everyday people.

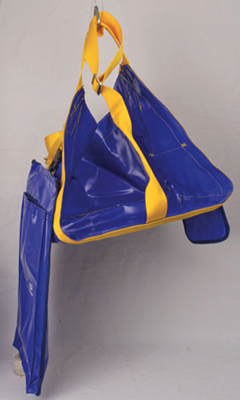

Bosun's Chair


Description

Plastimo bosun's chair.

Application

The bosun’s chair is connected to the halyard before the seafarer sits in the chair. They are then hoisted to where they need to work.



Safety Tether


Description

An elasticated tether with spring loaded closing hooks on the end.

Application

Used to hold a seafarer up the mast, against the mast, or to transfer weight off the hoisting halyard if required.

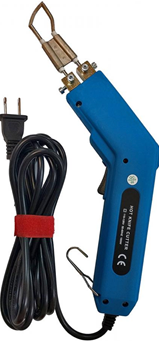

Hot Knife


Description

220V hot bladed cutting/melting tool.

Application

Cutting line to achieve a neat sealed end/edge on a line or fabric to limit fraying.

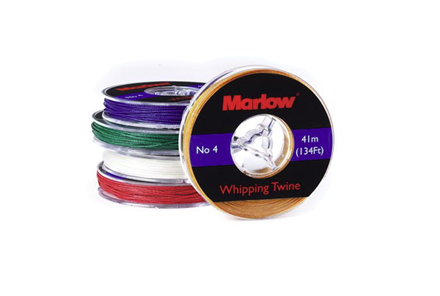

Whipping Twine


Description

1mm-3mm thin waxed line.

Application

Finishing lines with different types of whippings, to prevent fraying and marking certain points in lines.

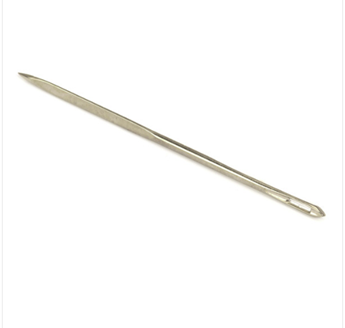

Sail Needle


Description

#15 sewing needle in stainless steel. Thick and durable with a wide eye.

Application

For sewing with whipping twine, repairing sails and for use when whipping lines.

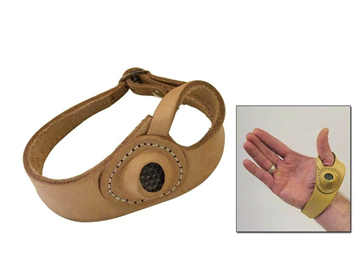

Sewing Palm


Description

A leather hand brace with metal thimble for pushing a sail needle through rope or heavy material.

Application

Hand protection while sewing.

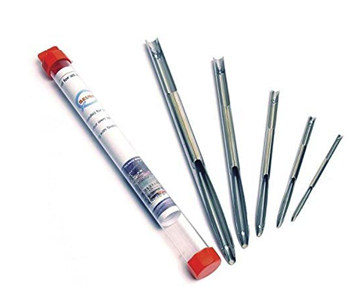

Hollow Splicing Fids


Description

Hollow fids for splicing multi-strand braided hollow core line like a mousing line.

Application

Making loops or joining lines.

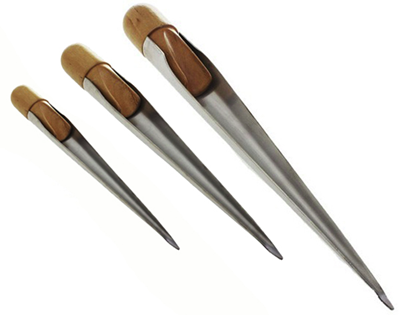

Braided Line Splicing Fids


Description

V shaped fids for multi- strand lines, such as mooring lines.

Application

Making ground tackle out of 3 strand braided line.

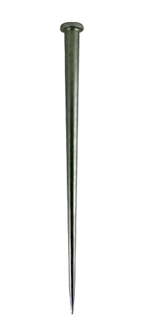

Marlin Spike


Description

A metal spike with a flat head that can be hammered and a point at the other.

Application

For undoing over tightened knots/shackles and for splicing preloaded synthetic lines and wire lines.



Halyard Extender


Description

12mm braided line that is used to extended Genoa and Jib halyards.

Application

Connects to the halyards, to extend them enough to drop them to the deck and in turn raise the sails again.



Hex Keys


Description

Also known as Allen Keys - fit into hexagonal sockets of bolts, both metric and imperial sets are kept on board.

Application

Used for tightening and undoing Allen/Hex cap bolts used throughout the rig.

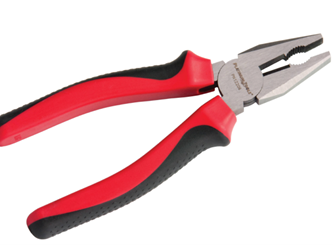

Blunt Nosed Pliers


Description

Blunt nosed pliers for gripping items.

Application

Tightening or loosening the shackles and breaking cable ties.



Long Nosed Pliers


Description

Long nosed pliers for gripping items.

Application

Used for holding split pins and bending wires if required.



Torx Key Set


Description

A tool set similar to Hex/Allen Keys but designed to fit star-shaped sockets in bolts.

Application

For undoing Torx head bolts around the rigging.



Small Shifting Spanner


Description

A size adjustable spanner

Application

For gripping hex nuts of different sizes.



What is another name for Hex Key?
